The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
Led Strips SMD 3014 - 204 led/m - 10500 lumen 24V - CRI80
Description
Cod: P.3014.204.2480

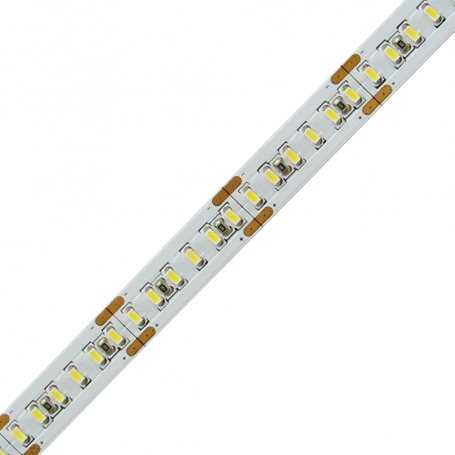

Flexible LED strip SMD type 3014 - length 5 meters.
Equipped with 3M adhesive tape for fixing.
Available with IP20 / IP65 / IP67 / IP68 protection rating.
Available CRI+80Ra | +90Ra | +95Ra
Technical Specifications:
Dimensions 5000x10mm
Power Consumption 125W / 25w/m
Voltage 24V
Operating Temp. -20°C / +45°C
Humidity 40% ~ 70% RH
MTBF 25,000 hours
| Product Code | CCT | LED Type | S. D. | LEDs mt | W/m | Power W | Lumen lm/m | Eff. LM/W | PCB width | Cutting length | CRI | CRI +90 | CRI +95 | |
| P.3014.204.2480-WW22 | 5.0 | 2200K | 3014 | S | 204 | 24 | 125 | 1540 | 70 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-WW24 | 5.0 | 2400K | 3014 | S | 204 | 24 | 125 | 1584 | 72 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-WW27 | 5.0 | 2700K | 3014 | S | 204 | 24 | 125 | 1716 | 78 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-W30 | 5.0 | 3000K | 3014 | S | 204 | 24 | 125 | 1800 | 85 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-NW40 | 5.0 | 4000K | 3014 | S | 204 | 24 | 125 | 1960 | 90 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-W55 | 5.0 | 5500K | 3014 | S | 204 | 24 | 125 | 1980 | 90 | 10mm | 2.94cm | 80 | optional | optional |
| P.3014.204.2480-W65 | 5.0 | 6500K | 3014 | S | 204 | 24 | 125 | 2100 | 95 | 10mm | 2.94cm | 80 | optional | optional |
Data sheet
- LED Type
- 3014 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 24
- Available Temperatures
- from 2200K to 6500K
- Operating Temperature
- -4°F / 113°F
- Power W
- 125
- Power / m
- 24 W/m
- Number of LEDs
- 204 LEDs/m
- Cutting Length
- 2.94 cm
- Lumen / m
- 2100
- LED Line
- Single
- PCB Width
- 10mm
- Luminous Flux
- 10500 Lumens Max
- IRC (Italian Red Cross)
- Ra+80
- Other Optional CRI
- Ra+90 / Ra+95
