The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci

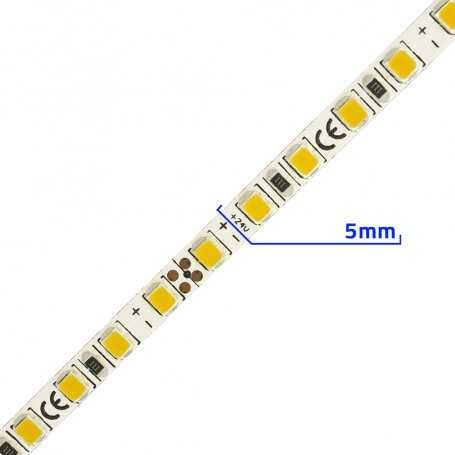

Led Strip SMD 2835 - 120 led/m - 1425 lumen/mt - 15W/mt - 24V - 5mt PCB 5mm PRO
Description
Strip 120 LEDs/m 2835 SMD divisible every 5 cm, Power 15 W/m with luminous flux of 1425. Available color temperatures: 3000k Warm White 4000K Natural White 6500k Cool White PCB width 5mm CRI Ra+90
Our LED strips with 2835 SMD LED and 120 LEDs/m are ideal for lighting furniture, kitchens, and cabinets in general.
Main Features:
- 2835 SMD LED
- Power 15 W/m
- 5-meter coil
- Cuttable every 5 cm
- 120 LEDs/m
- Luminous flux 1425
- Available in colors: 3000k Warm White 4000K Natural White 6500k Cool White
- Wide PCB 5mm
- Color rendering index Ra+90
- IP20
Applications:
- Primary lighting in small spaces
- Backlighting panels
- Cabinet lighting
- Under cabinet application
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
Main technical specifications
| MODEL | WW30 | NW40 | CW60 |
|---|---|---|---|
| Color temperature | 3000°K | 4000°K | 6000°K |
| Power / meter | 15 W/m | ||
| LED type | 2835 SMD | ||
| LED / meter | 120 LEDs/m | ||
| Lumen / Watt | 95 lm/w Max | ||
| Color rendering index CRI | Ra+90 | ||
| Input voltage | 24VDC | ||
| PCB width | 5mm | ||
| Cut length | 5 cm | ||
| Coil length | 5 meters | ||
See also:
Data sheet
- LED Type
- 2835 SMD
- Power Supply Type
- Constant Voltage / CV
- Input Voltage Volt
- 24
- Available Temperatures
- 3000k Warm White
4000K Natural White
6500k Cool White - Operating Temperature
- -4°F / 113°F
- Rating
- 555
- Power / m
- 15 W/m
- Number of LEDs
- 120 LEDs/m
- Cutting Length
- 5 cm
- Lumen / m
- 1425
- LED Line
- Single
- PCB Width
- 5mm
- IP Protection Grade
- IP20
- Luminous Flux
- 7125 Lumens
- Efficiency LM/W
- 95 lm/w Max
- IRC (Italian Red Cross)
- Ra+90
- Other Optional CRI
- Ra+95
