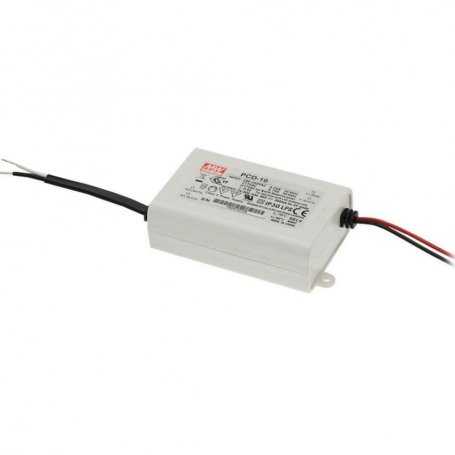

The product image may slightly differ as it is representative of the family and not the model.
PCD-16 Meanwell LED Power Supply 16W Constant Current DC Currents 350mA 700mA 1050mA 1400mA
Description
Power supplies for Led Mean Well series PCD-16, power 16Watt, nominal current 350mA, 700mA, 1050mA, 1400mA
The LED power supplies for Mean Well from the PCD-16 series are entry-level products, with a 3-year warranty, protected by a sturdy insulated plastic structure.
Features:
- MeanWell LED Power Supply
- Constant Current / CC
- AC Phase-Cut Dimmer
- Works with Triac dimmer
- 115VAC or 230VAC models available
- Built-in active PFC function
- Protections: short circuit, overtemperature
- Cooling by free air convection
- Fully insulated plastic case
- IP42 protection grade
- Class 2 power unit, no FG
- High reliability and low cost
- Suitable for LED devices or related devices (such as LED decorations or advertising devices)
- 100% full load burn-in test
- A: With AC 90-135 VAC input
B: With AC 180-295 VAC input - Dimensions: 84x57x29.5mm
- Warranty: 3 years
Applications:
- Camera power supply
- LED strips
- Power supply for LED spotlights
- Suitable for LED lighting and mobile signage applications
- LED module lighting for signs
- LED displays
Our rating:
- Reliability
- Price
- Features
-
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Mechanical Features
Main Technical Specifications
| MODEL | PCD-16-350 | PCD-16-700 | PCD-16-1050 | PCD-16-1400 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Type |
Constant Current / CC |
||||||||||||||||||||||||||
| Output Voltage Range | 24 ~ 48V | 16 ~ 24V | 12 ~ 16V | 8 ~ 12V | |||||||||||||||||||||||
| Nominal Output Current | 350mA | 700mA | 1050mA | 1400mA | |||||||||||||||||||||||
| Power (Nominal) | 16.8W | 16.8W | 16.8W | 16.8W | |||||||||||||||||||||||
| Efficiency | 82% | 81% | 80.5% | 80% | |||||||||||||||||||||||
| Input voltage range | A: With AC 90-135 VAC input B: With AC 180-295 VAC input |
||||||||||||||||||||||||||
| Dimmable | YES | ||||||||||||||||||||||||||
| Operating temperature | -30 ~ +60 °C | ||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||
| Dimensions | 84x57x29.5mm | ||||||||||||||||||||||||||
| Protection Grade | IP42 | ||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, FCC, CCC | ||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | ||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90~135VAC
90~135VAC
190~295VAC
190~295VAC - Operating Temperature
- -30°C / +60°C
- Rating
- 453
- Power W
- 16
- PFC
- Yes
- IP Protection Grade
- IP42
- Warranty
- 3 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 82%
- Dimensions
- 84x57x29.5mm
- Output Current mA
- 350
700
1050
1400 - Output Current A
- 0.7
0.35
1.05
1.4 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- FCC
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
