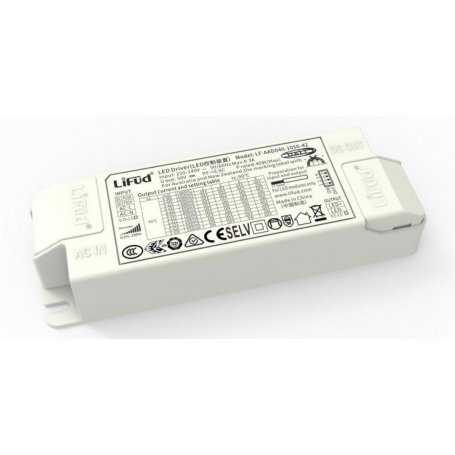

The product image may slightly differ as it is representative of the family and not the model.
Non disponibile - contattaci
LF-AAD040-1050-42 - Lifud LED Power Supply - 40W - from 550 to 1050mA Jolly Constant Current DC - DALI and push dimmable
Description
Available Models: LF-AAD040-1050-42
TheThis text seems to be a code or model number and does not require translation. It is a constant current LED driver. 40W. Offers dimming function DALI and push, with nominal voltage input 198-264VAC. The current output can be adjusted via DIP switch from 550mA until 1050mA, in steps of 50mA.
Features:
- IP20
- Perfect for Class II lighting systems
- Output at constant current. The output can be adjusted via DIP switch.
- Integrated active PFC.
- Stand-by consumption
- Dimming depth: 0.1%
- DALI dimming function. The logarithmic or linear dimming curve can be selected via software.
- Push dimming function
- 5 years warranty.
Applications:
- Office lighting
- Decorative lights
- Commercial lights
- Residential lights
- Plant lighting.
Our vote:
- Reliability
- Price
- Features
- [[voto1]There is no text provided to translate. Please provide the text you want translated.
- [[voto2]There is no text provided to translate. Please provide the text you want translated.
- [[voto3]There is no text provided to translate. Please provide the text you want translated.
Main technical specifications
| MODEL | This text seems to be a code or model number and does not require translation. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of exit | Constant Current / CC | ||||||||||
| Output voltage | 9~42V | 9~40V | 9~38V | ||||||||
| Nominal Output Current | 550mA | 600mA | 650mA | 700mA | 750mA | 800mA | 850mA | 900mA | 950mA | 1000mA | 1050mA |
| Power (Nominal) | 40 W | ||||||||||
| Dimmable |
DALI dimming function. Push dimming function. |
||||||||||
| Max Efficiency | ≥85% | ≥86% | ≥88% | ||||||||
| Input Voltage VAC | 220-240VAC (voltage limit: 198-264VAC) | ||||||||||
| PFC | YES | ||||||||||
| Protection Degree | IP20 | ||||||||||
| Working temperature | -20℃ ~ +45℃ | ||||||||||
| Dimensions | 141.5x46x27.5mm | ||||||||||
| Certifications | CE, CB, RCM, CCC, ENEC | ||||||||||
| For purchases and sampling | CONTACT US | ||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Insulation Voltage
- 3000
- Dimming LED
- Dali
Push - Led Dimming (interface)
- Dali
Push - External Use
- No
- Output Regulation Type
- Constant Current / CC
- Current Protection Type
- Hiccup Mode
- Power Supply Type
- Constant Current / CC
- Input Voltage VAC
- 220~240VAC
220~240VAC - Operating Temperature
- -4°F / 113°F
- Rating
- 453
- Output Voltage Range
- 9-42V, 9-40V, 9-38V
- Power W
- 40
- PFC
- YES
- IP Protection Grade
- IP20
- Warranty
- 5 Years
- Mechanical Mounting Format
- Closed Plastic Container
- Efficiency
- 85%
86%
88% - Dimensions
- 141.5x46x27.5mm
- Output Current mA
- 550
600
650
700
750
800
850
900
950
1000
1050 - Output Current A
- 0.55, 0.6, 0.65, 0.7, 0.75, 0.8, 0.85, 0.9, 0.95, 1, 1.05
- Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 2
- Certifications
- ENEC
It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 220
- Product Family
- I'm sorry, but the text you provided ("LF") is too short and lacks context for a meaningful translation. Could you please provide more information or a longer text?
