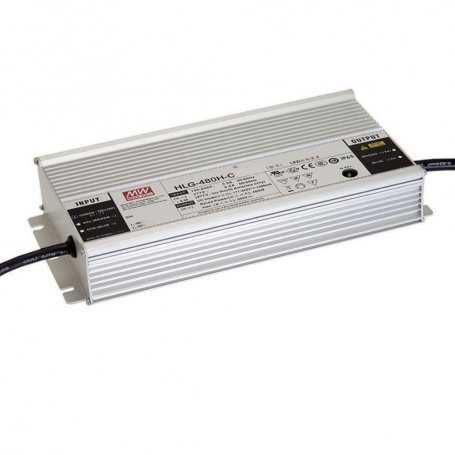

The product image may slightly differ as it is representative of the family and not the model.
HLG-480H-C Meanwell LED Power Supply 480W Constant Current DC Currents 1400mA 1750mA 2100mA 2800mA 3500mA
The LED power supplies Mean Well from the HLG-480H-C series are entry-level products, with a 7-year warranty, protected by a sturdy metal structure.
Features:
- MeanWell LED Power Supply
- Constant Current CC output mode
- Metal housing with class I design
- Protection degree IP67 / IP65 for indoor or outdoor installations
- Typical duration >62000 hours
- Built-in active PFC function
- Function options: adjustable output via potentiometer; 3 in 1 Dimming (dim-to-off, isolated design); Dimming with smart timer; Low temperature light ignition; Junction box
- Protections from: short circuit, overvoltage and overtemperature
- Dimensions: 262x125x43.8mm
- Warranty: 7 years
The HLG-480H-C series has a constant current and high voltage output mode, has an input voltage range from 90-305 VAC and offers models with nominal currents ranging from 1400 mA to 3500 mA.
The design of the metal housing and the IP67 / IP65 protection level allow this series to adapt to both internal and external applications.
The HLG-480H-C series is equipped with various function options, such as dimming methodologies, in order to provide optimal design flexibility for the LED lighting system.
Applications:
- LED street lighting
- LED lighting
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | HLG-480H-C1400 | HLG-480H-C1750 | HLG-480H-C2100 | HLG-480H-C2800 | HLG-480H-C3500 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output type | Constant Current / DC | |||||||||||||||||||||||||||
| Nominal output current | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA | |||||||||||||||||||||||
| Power (Nominal) | 480W | 480W | 481W | 479W | 480W | |||||||||||||||||||||||
| Efficiency | 95% | 95% | 95% | 95% | 95% | |||||||||||||||||||||||
| Input voltage range | 90 ~ 305VAC | |||||||||||||||||||||||||||
| Type A | Io adjustable via integrated potentiometer IP65 | |||||||||||||||||||||||||||
| Type B | 3-in-1 dimming function (0-10 VDC signal and resistance, 10V PWM) IP67 | |||||||||||||||||||||||||||
| Type AB | Io adjustable via integrated potentiometer and 3-in-1 dimming function (0-10VDC signal and resistance, 10V PWM) IP65 | |||||||||||||||||||||||||||
| Type Dx | Built-in intelligent timer dimming function available on user request IP67 | |||||||||||||||||||||||||||
| Type D2 | Integrated intelligent timer dimming and programmable function IP67 | |||||||||||||||||||||||||||
| Dimmable | YES | |||||||||||||||||||||||||||
| Working temperature |
-40 ~ +90 °C |
|||||||||||||||||||||||||||
| PFC | YES | |||||||||||||||||||||||||||
| Dimensions | 262x125x43.8mm | |||||||||||||||||||||||||||
| Protection degree | IP67 / IP65 | |||||||||||||||||||||||||||
| Certifications | CE, CB, EAC, CCC | |||||||||||||||||||||||||||
| For purchases and samples | CONTACT US | |||||||||||||||||||||||||||
Also see:
Download the catalogs of LED power supplies in the attachments tab.
- Dimming LED
- 0/10V
PWM
Potentiometer
Resistor (Ohm)
Timer Dimming - Led Dimming (interface)
- 0/10V
PWM
Potentiometer - Output Regulation Type
- Constant Current / CC
- Input Voltage VAC
- 90~305VAC
90~305VAC - Operating Temperature
- -40°C / +90°C
- Rating
- 453
- Power W
- 480
- PFC
- Yes
- IP Protection Grade
- IP65
IP67 - Warranty
- 7 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 95%
- Dimensions
- 262x125x43.8mm
- Output Current mA
- 1400
1750
2100
2800
3500 - Output Current A
- 1.4
1.75
2.1
2.8
3.5 - Input Connector
- Cable
- Output Connection
- Wired
- Isolation Class
- Class 1
- Certifications
- It appears that "CCC" does not provide enough context for an accurate translation. Could you please provide more information or a complete sentence?
Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- HLG-480H-C
