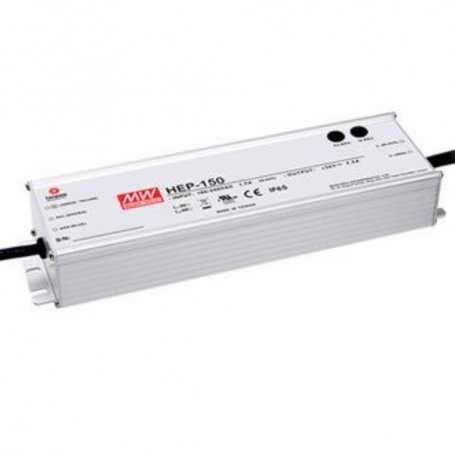

The product image may slightly differ as it is representative of the family and not the model.
HEP-150 MeanWell 150W LED Power Supply - Constant Voltage CV - Voltages 12V. 15V. 24V. 36V. 48V. 54V
Description
Power supplies for Led Mean Well HEP-150 series, 150Watt power, output voltages 12V, 15V, 24V, 36V, 48V, 54V
LED power supplies Mean Well of the HEP-150 series These are entry-level products, with a 6-year warranty, protected by a sturdy metal structure.
The power supply HEP-150 It is an industrial AC / DC power supply. 150WIt is an AC/DC power supply, characterized by operation in difficult environments that are highly humid, dusty, oily and with high vibrations.
The power output is: 150W
The whole HEP series It is equipped with an aluminum structure, completely coated with thermal conductive silicone.
Features:
- MeanWell LED Power Supply
- Universal AC input / Full range (up to 305 VAC)
- Active PFC function built-in
- High efficiency up to 94%
- Fanless design, cooling through free air convection
- Working temperature -55 ~ +70℃
- Aluminum casing and filling with thermal conductive silicone
- IP65 protection degree, model with optional IP68 classification available
- It meets the surge immunity level of 6KV.
- Resist the 10G vibration test
- Protections: short circuit, overload, overvoltage, overtemperature
- It works up to 5000 meters of altitude.
- Dimensions: 228x68x38.8mm
- Warranty: 6 years
Applications:
- Outdoor telecommunications equipment
- Electronic signage and billboard for postings
- Oil rig or mining well facility
Our vote:
- Reliability
- Price
- Characteristics
- [[voto1]You didn't provide any text to translate. Please try again.
- [[voto2]You didn't provide any text to translate. Please try again.
- [[voto3]You didn't provide any text to translate. Please try again.
Main technical specifications
| MODEL | HEP-150-12 | HEP-150-15 | HEP-150-24 | HEP-150-36 | HEP-150-48 | HEP-150-54 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type of exit | Constant Voltage / CV | ||||||||||||||||||||||||||||
| Output voltage | 12V | 15V | 24V | 36V | 48V | 54V | |||||||||||||||||||||||
| Output current |
12.5A |
10A | 6.3A | 4.2A | 3.2A | 2.8A | |||||||||||||||||||||||
| Power | 150W | 150W | 151.2W | 151.2W | 153.6W | 153.6W | |||||||||||||||||||||||
| Efficiency | 91.5% | 92% | 93% | 93.5% | 94% | 94% | |||||||||||||||||||||||
| Input voltage range | 85~264VAC | ||||||||||||||||||||||||||||
| Type A | Standard model, IP65, Vo and Io levels can be adjusted via internal potentiometer. | ||||||||||||||||||||||||||||
| Vacuum Type | Optional model, IP68, with level I and I fixed | ||||||||||||||||||||||||||||
| Dimmable | NO | ||||||||||||||||||||||||||||
| Working temperature | -55~ +70 °C | ||||||||||||||||||||||||||||
| PFC | YES | ||||||||||||||||||||||||||||
| Dimensions | 228x68x38.8mm | ||||||||||||||||||||||||||||
| Protection Degree | IP67, IP68 | ||||||||||||||||||||||||||||
| Certifications | CE, CB, EAC | ||||||||||||||||||||||||||||
| For purchases and sampling | CONTACT US | ||||||||||||||||||||||||||||
See also:
Download the LED power supply catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Input Voltage VAC
- 85~264VAC
85~264VAC - Operating Temperature
- -55°C / +70°C
- Rating
- 453
- Power W
- 150
- PFC
- Yes
- IP Protection Grade
- IP65
IP68 - Warranty
- 6 Years
- Mechanical Mounting Format
- Closed Metal Container
- Efficiency
- 94%
- Dimensions
- 228x68x38.8mm
- Output Current mA
- 2800
3200
4200
6300
10000
12500 - Output Current A
- 2.8
3.2
4.2
6.3
10
12.5 - Input Connector
- Cable
- Output Connection
- Wired
- Certifications
- Sure, but could you please provide the full text that you would like translated?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details. - Applications
- LED Power Supply
- Input Voltage VAC (Nominal)
- 110
220 - Product Family
- Sure, I'd be happy to help. Could you please provide the text you want to be translated?
