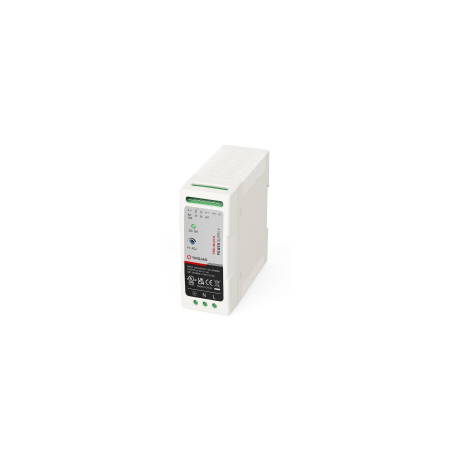

The product image may slightly differ as it is representative of the family and not the model.
YDC-60-27.6 – DIN rail power supply 27.6V 60W with battery charger
The YDC-60-27.6 model is a professional DIN rail power supply with 60W and an integrated battery charger function, developed for systems that use 24V buffer batteries. It provides an adjustable voltage from 24V to 30V, perfect for keeping lead-acid batteries charged and powering critical loads in parallel. Its high efficiency (88%), wide operating temperature range, and complete protection against overcurrents, overvoltages, short circuits, and battery discharge make it reliable for industrial applications, electrical panels, and security systems. It is equipped with AC OK and low battery indicators, and is designed for quick mounting on standard DIN rails.
Main Features
| Feature | Detail |
|---|---|
| Output Voltage | 27.6V DC adjustable (range 24 – 30V) |
| Output Channels | 2: main power + battery output |
| Output Current CH1 (load) | 1.4A |
| Output Current CH2 (battery) | 0.75A |
| Total Power | 59.34W |
| Universal Input | 90–264V AC / 127–370V DC |
| LED / open collector signals | AC OK / low battery |
| Typical Efficiency | 88% |
| Fault Protection | Overvoltage, overcurrent, short circuit, low battery |
| Cooling Mode | Natural convection (without fans) |
| Electrical Insulation | Class II |
| Operating Temperature | From -30°C to +70°C |
| Mounting | DIN rail TS-35/7.5 or 15 |
| Warranty | 3 Years |
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 27.6
- Input Voltage VAC
- 90 ~ 264VAC
- Operating Temperature
- -30°C / +70°C
- Power W
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Efficiency
- 88%
- Dimensions
- Output Current mA
- Output Current A
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- It seems like "TUV" is not a word in Italian, and it does not provide any context to translate. Could you please provide more context or check if there might be a typo?
This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Input Voltage VAC (Nominal)
- 220
