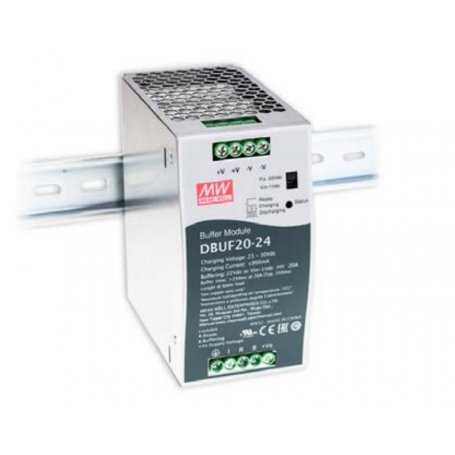

The product image may slightly differ as it is representative of the family and not the model.
DBUF20-24 - Power supply Mean Well buffer module DIN rail 20A 24V 22V
Description
Available models: DBUF20-24
The DBUF20-24 buffer module is an additional device for regulated 24V DC power supplies. The module uses electrolytic capacitors to store energy, thus eliminating the need for periodic replacements, compared to more expensive batteries with a shorter life span.
The DBUF20-24 offers OVP, OCP and SCP protections. It can also be connected in parallel to increase the output range or maintenance time.
Main features:
- Storage with electrolytic capacitors instead of lead-acid battery
- Storage time of 350ms @22VDC/20A
- Buffer mode selectable via switch:
- Fixed mode at 22VDC
- Dynamic mode for VIN-1VDC
- LED indicator for status
- Supports parallel connection for buffer time extension
- Natural air cooling
- -25-+75°C operating temperature
- 3 years warranty
Applications:
- Industrial control systems
- Industrial automation
- Electro-mechanical devices
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | DBUF20-24 |
|---|---|
| Input voltage | 24Vdc |
| Output voltage | 22Vdc |
| Recharging current | 900mA Max. |
| Dimensions | 63*125.2*114.9mm |
| Weight | 1.062Kg |
Also see:
Download the Din Rail power supplies catalogs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Voltage / CV
- Output Voltage VDC
- 24
- Operating Temperature
- -25 ~ +80℃
- Rating
- 453
- PFC
- No
- Warranty
- 3 Years
- Mechanical Mounting Format
- Din Rail
- Dimensions
- 63*125.2*114.9mm
- Output Current mA
- 900
- Output Current A
- 0.9
- Input Connector
- At Speed
- Output Connection
- At Speed
- Isolation Class
- Class 2
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
UL - Applications
- DIN Panel
ITE does not translate to anything in English as it appears to be an abbreviation or acronym. The translation would depend on the context it is used in.
Industrial Automation - Input Voltage VAC (Nominal)
- 110
220
